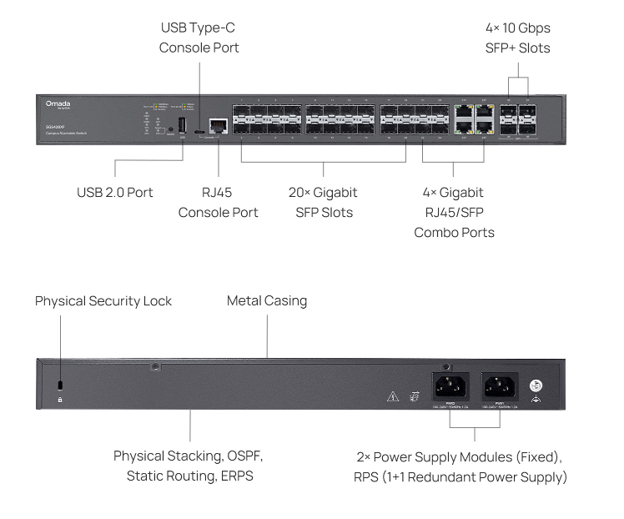

Giao diện

• 20× 100/1000 Mbps SFP Slots
• 4× Gigabit RJ45/SFP Combo Ports
• 4× 1/10 Gbps SFP+ Slots*
• 1× USB 2.0 Port
• 1× RJ45 Console Port
• 1× USB Type-C Console Port

Số lượng quạt

1 Fan

Bộ cấp nguồn

100-240 V~50/60 Hz

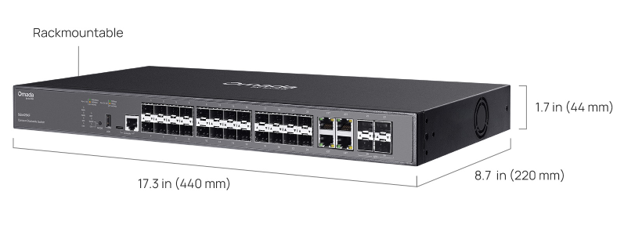

Kích thước ( R x D x C )

17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)

Lắp

Rackmountable

Tiêu thụ điện tối đa

• 28.3 W (220V/50Hz @ 25 °C)
• 28.98 W (110V/60Hz @ 25 °C)

Max. Heat Dissipation

• 96.503 BTU/hr (220V/50Hz @ 25 °C)
• 98.822 BTU/hr (110V/60Hz @ 25 °C)

Bộ nhớ đệm gói

12 Mbit

Khung Jumbo

9 KB

Stacking

• Stacking Number: 4
• Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports)
• Stacking Bandwidth: Up to 80 Gbps (4 stacking ports)

Switching Capacity

128 Gbps per Unit

Tốc độ chuyển gói

95.23 Mpps

Bảng địa chỉ MAC

16 K

Chất lượng dịch vụ

• Class of Service
- 8 Queues of Priority
- Port Priority
- IEEE 802.1p Priority
- DSCP Priority
- Queue Min-Bandwidth
- Schedule Mode (SP, WRR, SP+WRR)
• Bandwidth Control
- Rate Limit
- Storm Control
• Voice VLAN
• User-Defined OUI
• Smoother Performance
• Action for Flows
- QoS remark (802.1P Remark, DSCP Remark)

L3 Features

• IP Interfaces:
- IPv4: Max 128, IPv6: Max 128
• ARP
- Static Entries 512
- Dynamic Entries 3,600
• ND Dynamic Entries 3,600
• Static Route
- IPv4: Max 512, IPv6: Max 128
• Host Route
- IPv4: Max 1,024, IPv6: Max 890
• Network Route
- IPv4: Max 1,796, IPv6: Max 450
• RIP: Version v1/v2
• RIPng
• OSPF: Version V2/V3
• Proxy ARP
• DHCP Server:
- Max 64 IP Pools
- Max 8,000 Leases
- Max 1,000 Manual Binding Entries
• DHCP Relay:
- Relayed Interface
- Relayed VLAN

L2 and L2+ Features

• Link Aggregation
• Spanning Tree Protocol
• Port-based and VLAN-based Loopback Detection
• 802.3x Flow Control
• ERPS
• Mirroring
• RSPAN
• MAC Address Table
• Multicast
- IGMP Snooping
- MLD Snooping
- L2 Multicast Table: Max 2,000
- Fast Leave
- Multicast VLAN Registration (MVR)
- Static Multicast Groups
- Multicast Filtering

Advanced Features

• Automatic Device Discovery^†
• Batch Configuration^†
• Batch Firmware Upgrading^†
• Intelligent Network Monitoring^†
• Abnormal Event Warnings^†
• Unified Configuration^†
• Reboot Schedule^†

ISP Features:
• 802.3ah Ethernet Link OAM
• L2PT (Layer 2 Protocol Tunneling)
• Device Link Detect Protocol (DLDP)
• DDM
• sFlow

VLAN

• Max 4K VLAN Group (802.1q VLAN)
• 802.1Q Tagged VLAN
• MAC VLAN Entries: 60
• Multicast VLAN
• Management VLAN
• VLAN VPN (QinQ): Max 256 entries
• GVRP
• Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries
• Voice VLAN
• Private VLAN

Bảo mật

• Port Isolation
• CPU-Defend
• ARP Inspection (Dynamic ARP Inspection)
• DoS Defend
• IP-MAC-Port Binding
-1,024 Entries
- DHCP Snooping
- ARP Scanning
- ARP Detection
- IPv4 Source Guard
• IPv6-MAC-Port Binding
-1,024 Entries
- DHCPv6 Snooping
- ND Snooping
- ND Detection
- IPv6 Source Guard
• DHCP Filter
• Static/Dynamic Port Security
- Up to 64 MAC addresses per port
• Broadcast/Multicast/Unknown-unicast Storm Control
- kbps/ratio control mode
• 802.1X
- Port base authentication
- Mac base authentication
- VLAN Assignment
- MAB
- Guest VLAN
- RADIUS authentication and accountability support
• AAA (including TACACS+)
• Secure web management through HTTPS with SSLv3/TLS 1.2
• Secure Command Line Interface (CLI) management with SSHv2
• IP/Port/MAC-based access contro

Omada App

Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management

• Omada Cloud-Based Controller (Requires built-in version 5.15.22 or later)
• Omada Hardware Controller (Requires built-in version 5.15.20 or later)
• Omada Software Controller (Requires built-in version 5.15.20 or later)

Cloud Access

Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Zero-Touch Provisioning

Yes. Requiring the use of the Omada Cloud-Based Controller.

Management Features

• Web-based GUI
• Command Line Interface (CLI) through console port, telnet
• SNMPv1/v2c/v3
- Trap/Inform
- RMON (1, 2, 3, 9 groups)
• SDM Template
• DHCP/BOOTP Client
• 802.1ab LLDP/LLDP-MED
• DHCP Auto Install
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• Password Recovery
• SNTP
• System Log
• IEEE 802.3az Energy Efficient Ethernet (EEE)

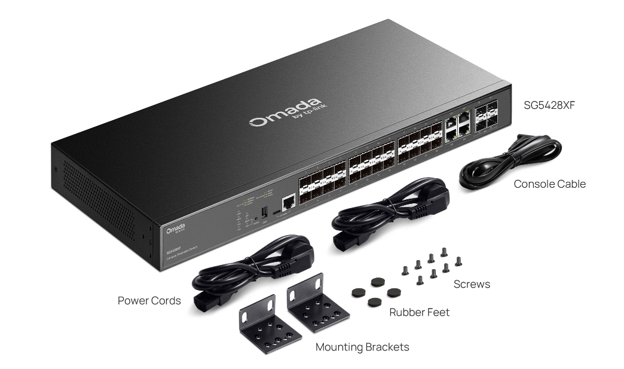

Sản phẩm bao gồm

• SG5428XF Switch
• Power Cords
• Console Cable
• Rackmount Kits
• Rubber Feet
• Quick Installation Guide
