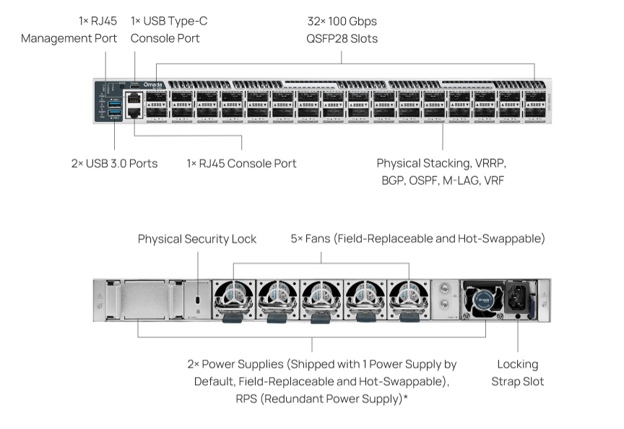

Giao diện

• 32× 40/100G QSFP28 Slots
• 2× USB 3.0 Ports
• 1× RJ45 Console Port
• 1× USB Type-C Console Port
• 1× RJ45 Management Port

Số lượng quạt

Five Field-replaceable and Hot-swappable Fans

Bộ cấp nguồn

Two Field-replaceable and Hot-swappable Power Supply Modules*(100–240 VAC, 50/60 Hz)

*Shipping with one PSM550-AC module by default, and another field-replaceable redundant power supply requires purchasing separately.

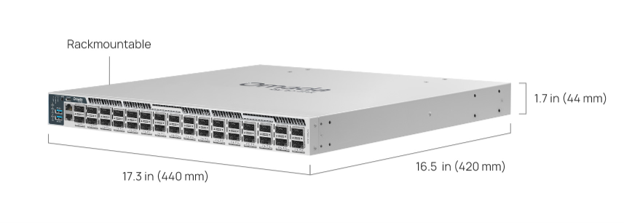

Kích thước ( R x D x C )

17.3 × 16.5 × 1.7 in (440 × 420 × 44 mm)

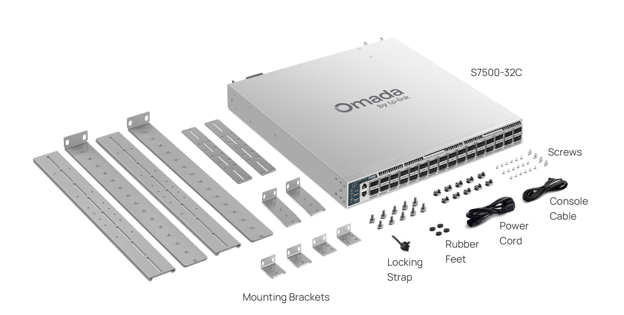

Lắp

Rackmountable

Tiêu thụ điện tối đa

• 311.2 W max @ 220V/50Hz 25 °C
• 316.7 W max @ 110V/60Hz 25 °C

Max. Heat Dissipation

• 1061.16 BTU/hr @ 220V/50Hz 25 °C
• 1080.02 BTU/hr @ 110V/60Hz 25 °C

Bộ nhớ đệm gói

24 MB

Khung Jumbo

9 KB

Stacking

• Stacking Number: 12 in standalone mode, 4 in controller mode
• Stacking Port: 100G QSFP28 Slot (all uplink ports can be used as stacking ports)**
• Stacking Bandwidth: 6.4 Tbps (All 32 QSFP28 slots set as stacking ports)

Switching Capacity

6.4 Tbps

Tốc độ chuyển gói

2.8 Bpps

Bảng địa chỉ MAC

Max 256 K

M-LAG

• M-LAG domain configuration
• DAD (Dual-Active Detection)
• Peer-link-port LAG

PTP

• IEEE 1588v2 (PTPv2), IEEE 802.1AS
• Clock-type: oc, bc, e2etc, p2ptc

Chất lượng dịch vụ

• Class of Service
- Priority Queues: 8 Queues
- Port Priority
- IEEE 802.1p Priority
- DSCP/ToS Priority
- Priority Schedule Mode: SP/WRR per Queue
- Queue Weight Config: For WRR/SP+WRR Mode
• Bandwidth Control
- Rate Limit
- Storm Control
• Voice VLAN
• WRED

L3 Features

• L3 Interface: 4,094 (IPv4,IPv6)
• Static Route: 2,048 IPv4, 1,024 IPv6
• Host Route Table: Max 22,528 entries
• IPv4 Network Router Entries: Max 516,096 (shared with IPv6 Network Router entries)
• IPv6 Network Router Entries: Max 258,048 (shared with IPv4 Network Router entries)
• ECMP
• Dynamic ARP: 45056
• ND: 45,056
• DHCPv4 Server: Max 512 IP pool
• DHCPv4/v6 Relay
• VRRPv2/v3
• OSPFv2/v3
• RIPv1/v2
• RIPng
• VRF
• IS-ISv4/v6
• BGPv4
• PIM-SM/PIM-DM/PIM-SSM
• IGMPv1/v2/v3, IGMP Groups: 2048
• BFD: 16 template numbers, 32 session numbers
• PBR
• uRPF

L2 and L2+ Features

• LACP / Static LAG
• STP / RSTP / MSTP / STP Security
• ERPS
• Port Isolation
• Loopback Detection
• Port Security
• Sticky MAC
• 802.3x Flow Control
• Port Mirror
• RSPAN
• LLDP
• LLDP-MED
• Multicast
- IGMP Snooping
- MLD Snooping
- Multicast VLAN Registration (MVR)
- Max Multicast Table: 1K (IPv4, IPv6)
- Fast Leave
- IGMP Snooping Querier
- MLD Snooping Querier
- Multicast Filtering
- Unknown Multicast Discard

Advanced Features

• Automatic Device Discovery^‡
• Batch Configuration^‡
• Batch Firmware Upgrading^‡
• Intelligent Network Monitoring^‡
• Abnormal Event Warnings^‡
• Unified Configuration^‡
• Reboot Schedule^‡
ISP Features:
• 802.3ah Ethernet Link OAM
• L2PT (Layer 2 Protocol Tunneling)
• Device Link Detect Protocol (DLDP)
• DDM
• sFlow

VLAN

• 802.1Q VLAN(802.1q): 4K VLANs
• MAC VLAN: 200 entries
• Protocol VLAN (IEEE 802.1v)
- 16 Protocol VLAN Templates
- 12 Protocol VLAN Groups
• QinQ(VLAN VPN): 256 entries
• Private VLAN
• GVRP

Bảo mật

• IP-MAC-Port Binding
-1,024 Entries
- ARP Scanning
- Manual Binding
- DHCP Snooping
• IPv6-MAC-Port Binding
-1,024 Entries
- DHCPv6 Snooping
- Manual Binding
- ND Snooping
• ARP Inspection (Dynamic ARP Inspection)
• ND Detection
• IP Source Guard
• IPv6 Source Guard
• RA Guard: 30 entries
• DoS Defend
• DHCP Filter
• 802.1X
- Radius Authentication
- Radius Accounting
- Radius Server Load Balancing
- RADSEC
- Guest VLAN
- VLAN Assignment
- MAB
• AAA (including TACACS+)
• ACL
• Secure boot

Omada App

Yes, through Omada Pro Controller

Centralized Management

• Omada Pro Cloud-Based Controller
• Omada Pro Hardware Controller
• Omada Pro Software Controller

Cloud Access

Yes, through Omada Pro Controller

Zero-Touch Provisioning

Yes. Requiring the use of Omada Pro Cloud-Based Controller.

Management Features

• Web-based GUI
• Command Line Interface (CLI) through console port, telnet
• SNMPv1/v2c/v3
- Trap/Inform
- RMON (1, 2, 3, 9 groups)
• SDM Template
• DHCP/BOOTP Client
• 802.1ab LLDP/LLDP-MED
• DHCP Auto Install
• Dual Image, Dual Configuration
• CPU Monitoring
• Password Recovery
• SNTP
• System Log
