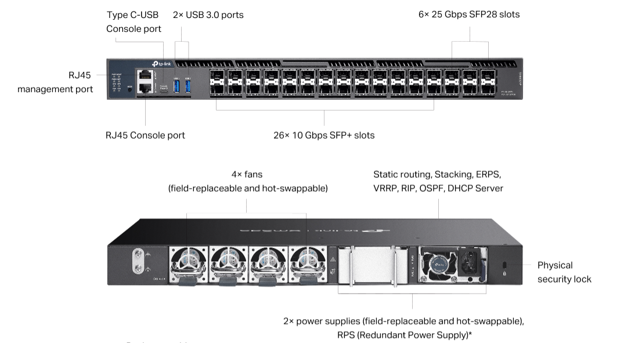

Giao diện

• 6× 10/25G SFP28 Slots
• 26× 1/10G SFP+ Slots
• 2× USB 3.0 Ports
• 1× RJ45 Console Port
• 1× USB Type C Console Port
• 1× RJ45 Management Port

Số lượng quạt

Four field-replaceable and hot-swappable fans (N+1 redundant)

Khóa bảo mật vật lý

√

Bộ cấp nguồn

Two field-replaceable and hot-swappable redundant power supplies (100–240 VAC, 50/60 Hz)

*Ships with one PSM550-AC module by default, and another field-replaceable redundant power supply requires a separate purchase.

Điện năng tiêu thụ

86.7 W (110 V/60 Hz)

Kích thước ( R x D x C )

17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm)

Lắp

Rack Mountable

Max. Heat Dissipation

295.85 BTU/hr (110 V/60 Hz)

Switching Capacity

820 Gbps

Stacking

• Stacking Number: 8
• Stacking Port: 25G SFP28
• Stack Bandwidth: Up to 300 Gbps (6 stack ports)

Tốc độ chuyển gói

610.1 Mpps

Bảng địa chỉ MAC

128 K

Bộ nhớ đệm gói

8 MB

Khung Jumbo

9 KB

Chất lượng dịch vụ

• Class of Service
- 8 Queues of Priority
- Port Priority
- IEEE 802.1p Priority
- DSCP Priority
- Queue Min-Bandwidth
- Schedule Mode (SP, WRR, SP+WRR)
• Bandwidth Control
- Rate Limit
- Strom Control
• User-Defined OUI
• Smoother Performance
• Action for Flows
- QoS remark (802.1P Remark, DSCP Remark)

L3 Features

• IP Interfaces:
- IPv4: Max 256, IPv6: Max 256
• Static Routing
- IPv4: Max 2,048, IPv6: Max 1,024
• Host Route Table: Max 15,300 entries
• RIP: Version v1/v2, Max 102,400
- RIPng: Max 51,200
• OSPF: Version v2/v3;
- v2: Max 102,400
- v3: Max 51,200
• VRRP: Version v2/v3, Max 64 groups
• ECMP: 256 entries, max 32 ECMP Nexhops per Destination
• Static ARP
- 1,024 static entries
• Dynamic ARP
- 24,576 dynamic entries
• Proxy ARP
• DHCP Server:
- Max 64 IP Pools
- Max 1,000 Manual Binding Entries
• DHCP Relay:
- Relayed Interface
- Relayed VLAN

L2 and L2+ Features

• Link Aggregation
- Static link aggregation
- 802.3ad LACP
- Up to 8 ports per group
- Up to 120 LAG Groups
• Spanning Tree Protocol
- 802.1d STP
- 802.1w RSTP
- 802.1s MSTP
- Up to 64 MSTI instances (4 at Omada controller mode)
- STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect
• Loopback Detection
- Port based
- VLAN based
• Flow Control
- 802.3x Flow Control
• Supports 4,093 IGMP groups
• ERPS: Up to 64 ERPS rings
• Mirroring
- Port Mirroring
- CPU Mirroring
- One-to-One
- Many-to-One
- Tx/Rx/Both
• RSPAN
• Mac Address
- MAC Address Table
- Static MAC: Max 128 entries
- Dynamic MAC Address: Max 128K entries
- Filtering MAC Address: Max 128 entries
• Virtual MAC (only supported in standalone mode)
• PIM-DM, PIM-SM (IPv4)

Advanced Features

• Automatic Device Discovery^†
• Batch Configuration^†
• Batch Firmware Upgrading^†
• Intelligent Network Monitoring^†
• Abnormal Event Warnings^†
• Unified Configuration^†
• Reboot Schedule^†

ISP Features:
• 802.3ah Ethernet Link OAM
• L2PT (Layer 2 Protocol Tunneling)
• Device Link Detect Protocol (DLDP)
• DDM
• sFlow
• PPPoE ID Insertion

VLAN

• VLAN Group (802.1q VLAN)
- Max 4K VLAN Groups
• 802.1Q Tagged VLAN
• MAC VLAN entries: 200
• Multicast VLAN
• Management VLAN
• VLAN VPN (QinQ): Max 256 entries
• GVRP
• Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries
• VLAN VPN
- VLAN Mapping
- VLAN Replace
• Voice VLAN
• Private VLAN

Bảo mật

• Port Isolation
• CPU-Deffend
• ARP Inspection (Dynamic ARP Inspection)
• DoS Defend
• IP-MAC-Port Binding
-1,024 Entries
- DHCP Snooping
- ARP Inspection
- IPv4 Source Guard
• IPv6-MAC
-Port Binding
-1,024 Entries
- DHCPv6 Snooping
- ND Detection
- ND Snooping
- IPv6 Source Guard
• DHCP Filter
• Static/Dynamic Port Security
- Up to 64 MAC addresses per port
• Broadcast/Multicast/Unknown-unicast Storm Control
- kbps/ratio control mode
• 802.1X
- Port base authentication
- Mac base authentication
- VLAN Assignment
- MAB
- Guest VLAN
- Support RADIUS authentication and accountability
• AAA (including TACACS+)
• Secure web management through HTTPS with SSLv3/TLS 1.2
• Secure Command Line Interface (CLI) management with SSHv2
• IP/Port/MAC based access control

Omada App

Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management

• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller

Cloud Access

Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Zero-Touch Provisioning

Yes. Requiring the use of Omada Cloud-Based Controller.

Management Features

• Web-based GUI
• Command Line Interface (CLI) through console port, telnet
• SNMPv1/v2c/v3
- Trap/Inform
- RMON (1, 2, 3, 9 groups)
• SDM Template
• DHCP/BOOTP Client
• 802.1ab LLDP/LLDP-MED
• DHCP Auto Install
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• Password Recovery
• SNTP
• System Log

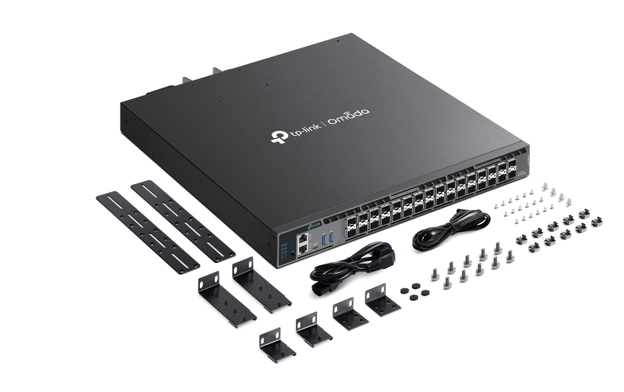

Sản phẩm bao gồm

• SX6632YF Switch
• Power Cord
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet

System Requirements

Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
