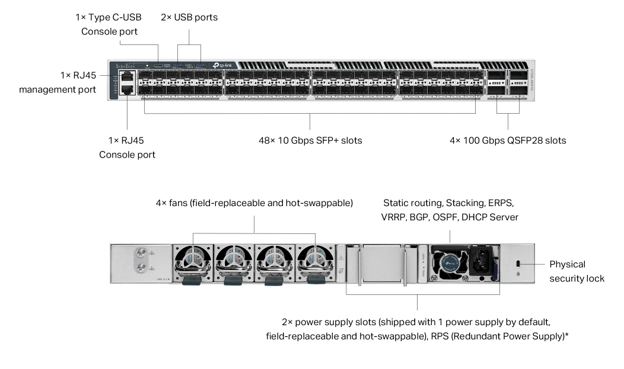

Giao diện

• 48× 1/10Gbps SFP+ Slots**
• 4× 40/100Gbps QSFP28 Slots
• 2× USB 3.0 Ports
• 1× RJ45 Console Port
• 1× USB Type-C Console Port
• 1× RJ45 Management Port

Số lượng quạt

Four Field-replaceable and Hot-swappable Fans

Bộ cấp nguồn

Two Field-replaceable and Hot-swappable Power Supply Modules*(100–240 VAC, 50/60 Hz)

*Shipping with one PSM550-AC module by default, and another field-replaceable redundant power supply requires purchasing separately.

Kích thước ( R x D x C )

17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm)

Lắp

Rackmountable

Tiêu thụ điện tối đa

105.7 W (110 V/60 Hz)
109.3 W (220 V/50 Hz)

Max. Heat Dissipation

360.7 BTU/hr (110 V/60 Hz)
372.9 BTU/hr (220 V/50 Hz)

Bộ nhớ đệm gói

10 MB

Khung Jumbo

9 KB

Stacking

• Stacking Number: 12 (standalone mode)
• Stacking Port: 100G QSFP28 Slot (all uplink ports can be used as stacking ports)***
• Stacking Bandwidth: Up to 800 Gbps (4 stacking ports)

Switching Capacity

1760 Gbps per Unit

Tốc độ chuyển gói

600 Mpps

Bảng địa chỉ MAC

128 K

Chất lượng dịch vụ

• Class of Service
- 8 Queues of Priority
- Port Priority
- IEEE 802.1p Priority
- DSCP Priority
- Queue Min-Bandwidth
- Schedule Mode (SP, WRR, SP+WRR)
• Bandwidth Control
- Rate Limit
- Storm Control
• Voice VLAN
• User-Defined OUI
• Smoother Performance
• Action for Flows
- QoS remark (802.1P Remark, DSCP Remark)

L3 Features

• L3 Interface: 256 (IPv4,IPv6)
• Static Route: 2,048 IPv4, 1,024 IPv6
• Host Route Table: Max 22,528 entries
• IPv4 Network Router entries: 40,960 (shared with IPv6 Network Router entries)
• IPv6 Network Router entries: 40,960 (shared with IPv4 Network Router entries)
• ECMP: 768 entries, max 32 ECMP Nexthops per Destination
• Static ARP: 1,024 static entries
• Dynamic ARP: 45,056 dynamic entries
• ND: 45,056
• DHCP Server: Max 64 IP pool, Max 8,000 IP entries
• DHCPv4/v6 Relay
• VRRP: Version v2/v3, Max 64 instances, Max 32 Virtual IP per instance
• OSPFv2
- OSPF Instance: 16
- Network Entries: 256 entries
- Area Entries for Stub or NSSA: 16 per instance
- Area Range Entries: 16 per instance
- Virtual-link Entries: 16 per instance
• OSPFv3
- Area Entries for Stub or NSSA: 16 per instance
- Area Range Entries: 16 per instance
• RIPv1/v2
- Network Entries: 256
- Redistribute Entries: 20
• RIPng
• IS-IS
- IS-IS Interfaces: 128
- IS-IS Area Numbers: 3
- Max Redistribute Configs: 10
- IS-IS IPV6
- IS-IS BFD
• BGP: Max 20 redistribute configs
• PIM-SM/PIM-DM/PIM-SSM
- IP Multicast Route Entries: 1K
- PIM Neighbors: 256
- Max PIM Interfaces: 128
• IGMP: Version v1/v2/v3, Max 2,048 multicast groups
• BFD: 16 template numbers, 8 session numbers
• PBR
• uRPF

L2 and L2+ Features

• Link Aggregation
• Spanning Tree Protocol
• Port-based and VLAN-based Loopback Detection
• 802.3x Flow Control
• ERPS
• Mirroring
• RSPAN
• MAC Address Table
• Multicast
- IGMP Snooping
- MLD Snooping
- Multicast VLAN Registration (MVR)
- Max Multicast Table: 4K (IPv4, IPv6)
- Fast Leave
- Static Multicast Groups
- Multicast Filtering
- IGMP Snooping Authentication

Tính năng nâng cao

• Automatic Device Discovery^‡
• Batch Configuration^‡
• Batch Firmware Upgrading^‡
• Intelligent Network Monitoring^‡
• Abnormal Event Warnings^‡
• Unified Configuration^‡
• Reboot Schedule^‡

ISP Features:
• 802.3ah Ethernet Link OAM
• L2PT (Layer 2 Protocol Tunneling)
• Device Link Detect Protocol (DLDP)
• DDM
• sFlow

VLAN

• Max 4K VLAN Group (802.1q VLAN)
• 802.1Q Tagged VLAN
• MAC VLAN Entries: 200
• Multicast VLAN
• Management VLAN
• VLAN VPN (QinQ): Max 256 entries
• GVRP
• Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries
• Voice VLAN
• Private VLAN

Bảo mật

• Port Isolation
• CPU-Defend
• ARP Inspection (Dynamic ARP Inspection)
• DoS Defend
• IP-MAC-Port Binding
-1,024 Entries
- DHCP Snooping
- ARP Inspection
- IPv4 Source Guard
• IPv6-MAC-Port Binding
-1,024 Entries
- DHCPv6 Snooping
- ND Detection
- ND Snooping
- IPv6 Source Guard
• DHCP Filter
• Static/Dynamic Port Security
- Up to 64 MAC addresses per port
• Broadcast/Multicast/Unknown-unicast Storm Control
- kbps/ratio control mode
• 802.1X
- Port base authentication
- Mac base authentication
- VLAN Assignment
- MAB
- Guest VLAN
- RADIUS authentication and accountability support
• AAA (including TACACS+)
• Secure web management through HTTPS with SSLv3/TLS 1.2
• Secure Command Line Interface (CLI) management with SSHv2
• IP/Port/MAC-based access control
• Secure boot
• RADSEC

Ứng dụng Omada

Có, thông qua Bộ điều khiển Omada Pro

Quản lý tập trung

• Bộ điều khiển dựa trên đám mây Omada Pro

• Bộ điều khiển phần cứng Omada Pro

• Bộ điều khiển phần mềm Omada Pro

Truy cập đám mây

Có, thông qua bộ điều khiển Omada Pro

Cấu hình tự động hoàn toàn

Có. Yêu cầu sử dụng bộ điều khiển dựa trên đám mây Omada Pro.

Tính năng quản lý

• Web-based GUI
• Command Line Interface (CLI) through console port, telnet
• SNMPv1/v2c/v3
- Trap/Inform
- RMON (1, 2, 3, 9 groups)
• SDM Template
• DHCP/BOOTP Client
• 802.1ab LLDP/LLDP-MED
• DHCP Auto Install
• Dual Image, Dual Configuration
• CPU Monitoring
• Password Recovery
• SNTP
• System Log

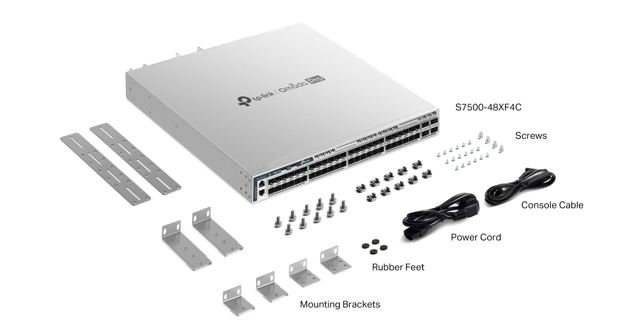

Sản phẩm bao gồm

• S7500-48XF4C Switch
• Power Cord
• RJ45 Console Cable
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet

Yêu cầu hệ thống

Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
